VFD Retro-Futuristic Clock

VFD Retro-Futuristic Clock

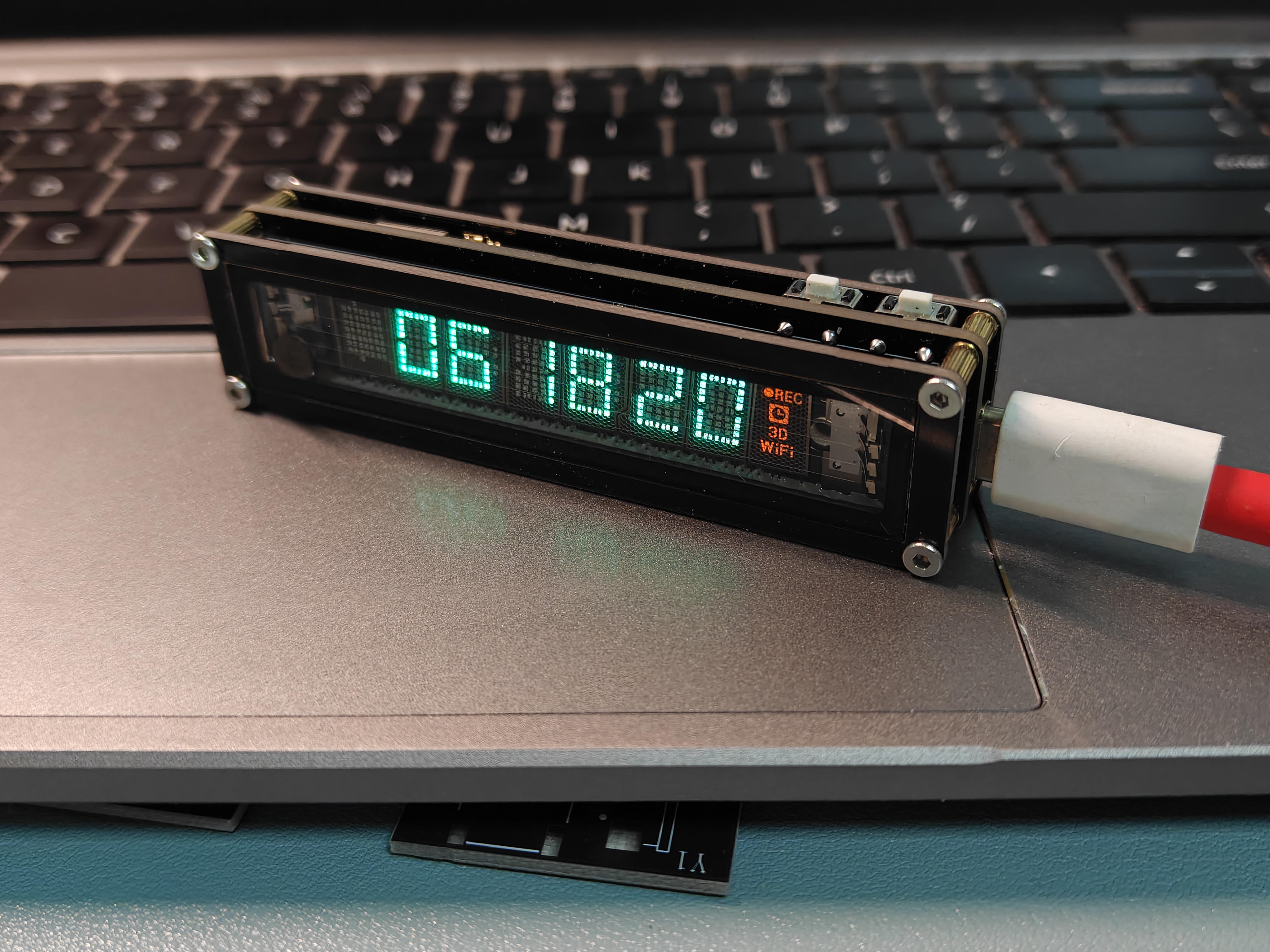

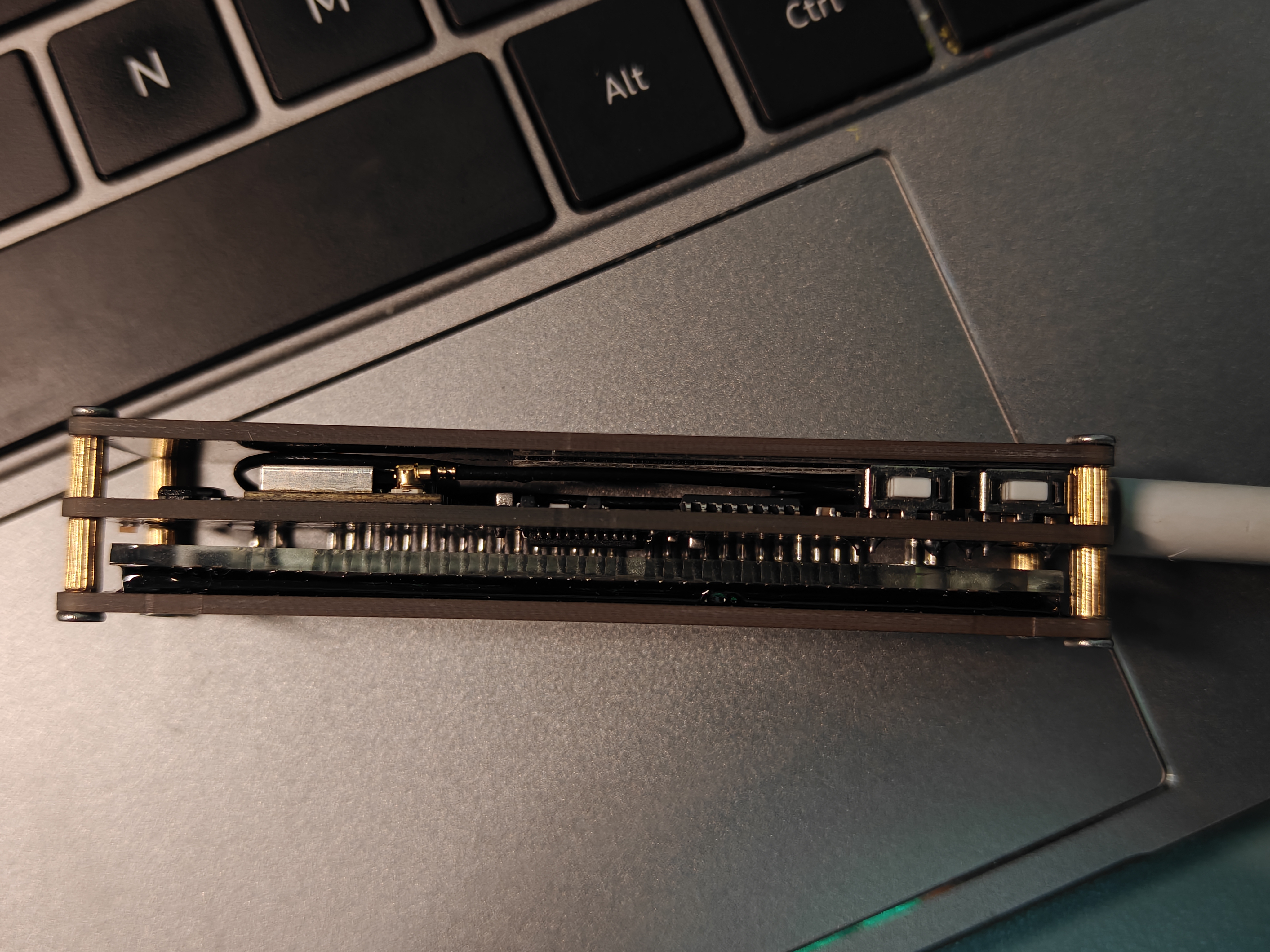

The Cyberpunk Aesthetic of VFD

The fluorescent glow emitted by VFD displays possesses such a distinct cyber-futuristic vibe. As you can see, this type of display differs significantly from the common LED screens we encounter daily, and its operating principle is equally fascinating.

You can conceptualize it as a miniaturized Cathode Ray Tube (CRT), with its core mechanism relying on thermionic emission to excite phosphors. If you observe closely, you will notice several extremely fine tungsten filaments at the very top. These filaments are coated with oxides of barium, strontium, and calcium.

When heated to 600–650°C, the thermal energy allows electrons on the cathode surface to gain sufficient energy, forming an "electron cloud" around the filaments. To prevent oxidation of the tungsten, the interior of the VFD is maintained in a high-vacuum state.

Situated beneath the filaments is a mesh-like grid, which functions effectively as a switch. When a positive voltage is applied, it attracts and accelerates the electrons emitted by the filaments, allowing them to pass through; conversely, a negative voltage repels them.

Beneath each phosphor segment lies a tiny anode. When a positive voltage is applied here, electrons surge through the grid "switch" and violently bombard the phosphor on the anode. Upon absorbing this energy, the phosphors release their captivating colors, exuding a unique charm of retro-futurism.

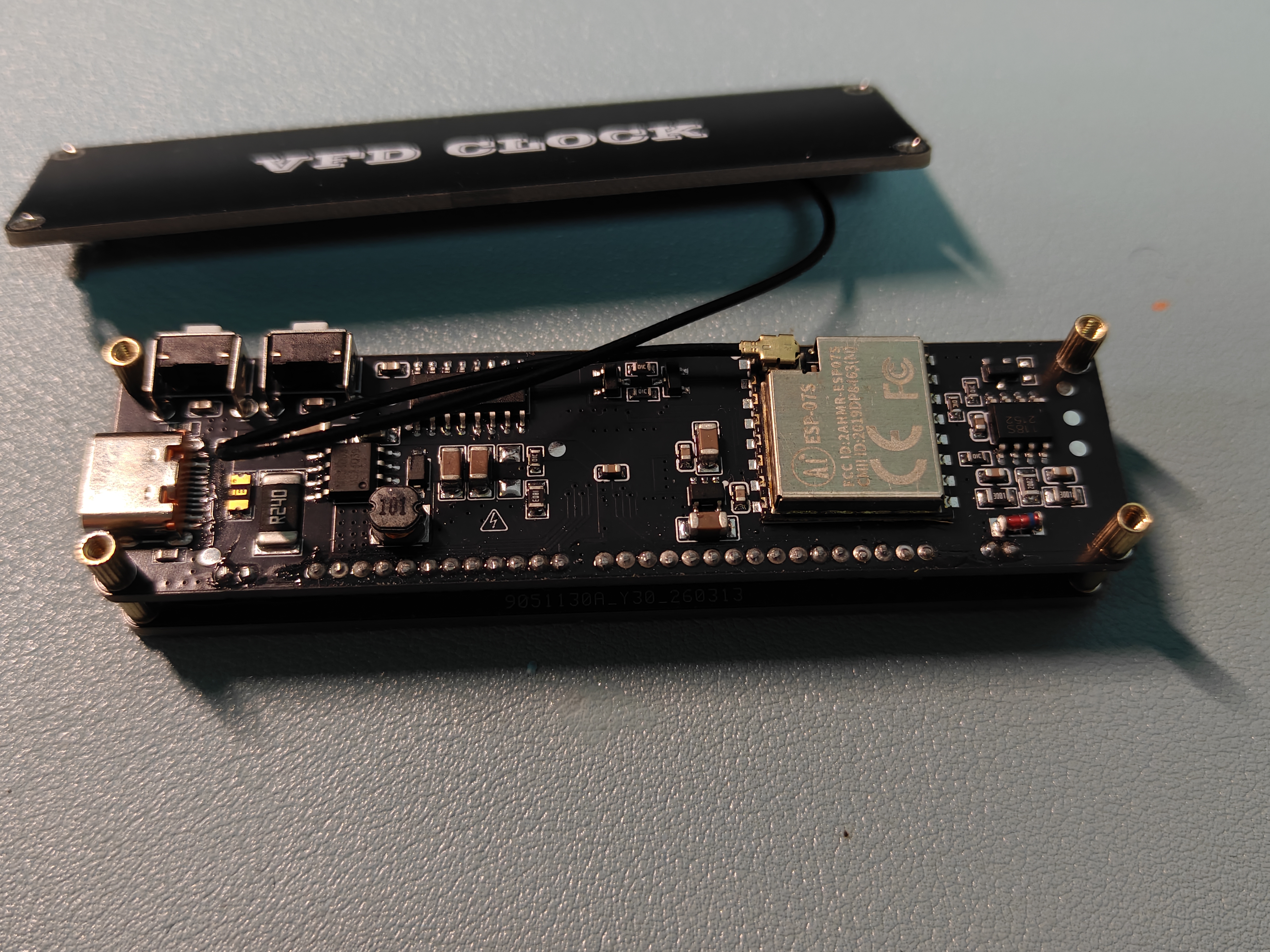

#Powered by the ESP8266, this device is fully network-capable, allowing for online time calibration. The complete source code and a guide on setting up the display are available on my GitHub.
